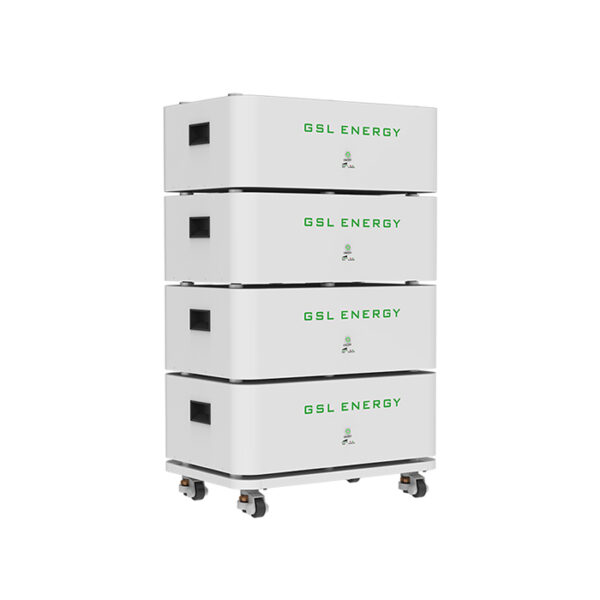

The GSL ENERGY Stackable Energy Storage Battery is an advanced residential and commercial energy storage solution designed for flexibility, safety, and smart energy management.
Built with high-quality LiFePO4 cells, it ensures exceptional cycle life, consistent power output, and stable operation for solar systems, backup power, and off-grid applications.
Available in 5.12kWh and 10.24kWh modules, this system allows users to customize capacity based on their specific energy needs, while maintaining compact design and simple installation.
Up To 10-15 Years Warranty
Certifications
7x24hrs Technical Support
| Model No | GSL 5000U-5KWH | GSL 10000U-10KWH |
| Battery Chemistry | LiFePO4 Battery | |
| Voltage | 51.2V | |
| Capacity | 100Ah | 200Ah |
| Energy | 5.12kWh | 10.24kWH |
| Operating Voltage | 46–56V | |
| Max. Charge Voltage | 56Vdc | |
| Max. Charge Current | 100A (5120W) | |
| Max. Discharge Current | 100A (5120W) | |
| Warranty Period [3] | 10 years | |
| Dimension (W/H/D) | 590*435*165mm | 685*435*231m |
| Weight Approximate | 50kgs | 100.5kgs |
| Master LED Indicator | 4 LED (SOC:25%~100%) | |
| 2 LED (working, alarming, protecting) | ||
| IP Rating of Enclosure | IP20 (Indoor use) | |
| Storage Time/ Temperature | 5months@25°C;3months@35°C;1month@45°C | |
| Working Temperature | -20°C to 60°C @60+/-25% Relative Humidity | |
| Storage Temperature | 0°C to 45°C @60+/-25% Relative Humidity | |
| Humidity | 5%~95% | |
| Altitude | ≤3000m | |
| Cycle Life | ≥6500 | |
| (25±2°C,0.5C/0.5C,80%EOL) | ||
| Certification | IEC62619, CE-EMC, UN38.3, MSDS | |
Complies with IEC62619 and CE international safety standards, meeting global quality requirements for residential and C&I (Commercial & Industrial) applications.

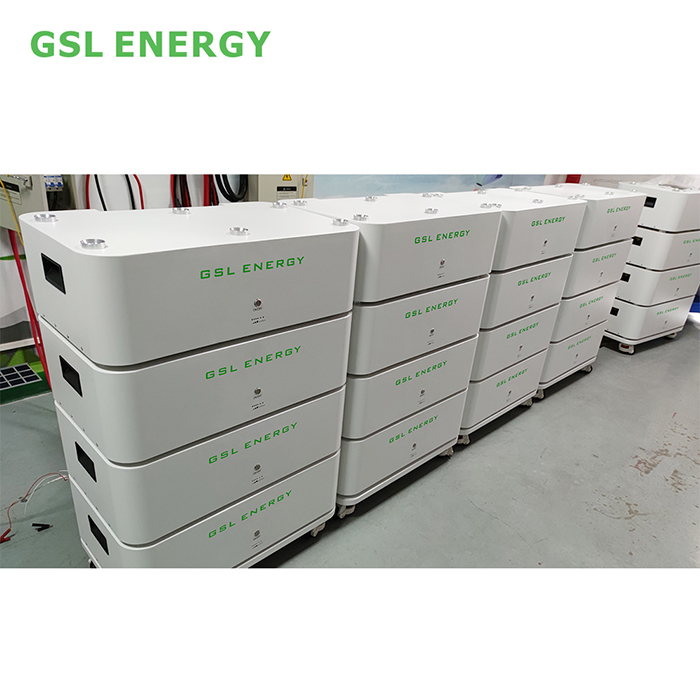

Each battery undergoes strict quality inspection before shipment from our GSL ENERGY automated production line.
Supports parallel connection of up to 16 units, providing scalable energy capacity for future expansion.
Ideal for home, small business, or community energy systems needing modular growth.
Integrated GSL self-developed Battery Management System (BMS) with Bluetooth monitoring.
Real-time data display for voltage, temperature, and cycle status via mobile app.
Multi-layer protection from overcharge, over-discharge, overcurrent, and overheating.

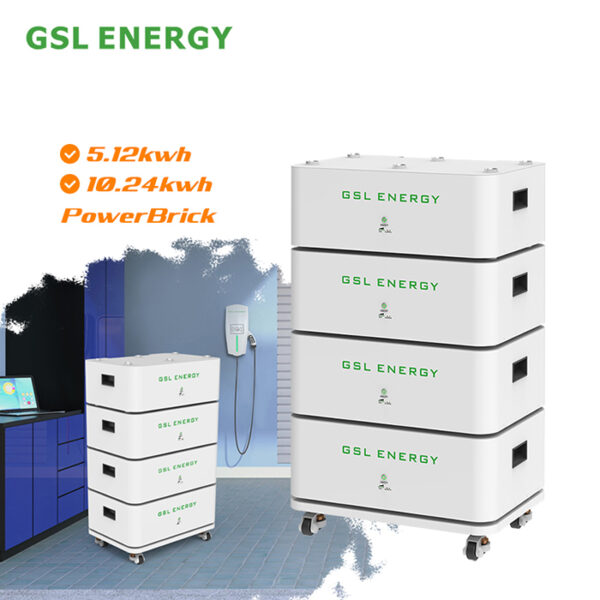

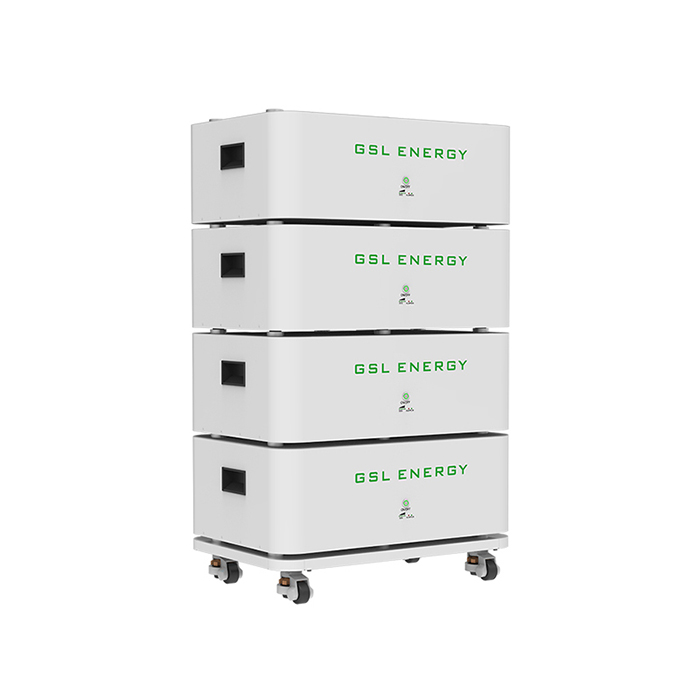

Space-saving vertical stacking design with secure locking mechanism.
Easy installation and maintenance — perfect for homes, offices, or energy storage rooms.
Aesthetic modular structure with optional rolling base for mobility.
More than 6500 cycles under 80% Depth of Discharge (DOD).
High energy conversion efficiency ensures maximum solar utilization and reduced electricity cost.
Seamlessly compatible with major hybrid inverter brands such as Deye, Growatt, Sol-Ark, GoodWe, and LuxPower.
Fully supports hybrid, off-grid, and backup system integrations.
Manufacturer Advantages
GSL ENERGY — a professional LiFePO4 battery manufacturer with over 15 years of experience — provides OEM, ODM, and OBM services to global partners.
15,000㎡ automated factory located in Guangdong, China
Annual production capacity: 5.8GWh
Certified with UL9540, UL1973, CE, CB, IEC62619, UN38.3, and MSDS
Serving clients in 138+ countries with B2B customization and factory-direct support
Share your project requirements with GSL ENERGY. Our team supports residential, commercial and industrial energy storage projects across the United States and Canada.
